Submersible Sewage Pump features and conditions of use, installation method
 Aug 03, 2021|View:254

Submersible Sewage Pump is used for the discharge of heavily polluted wastewater from factories and commercial buildings, sewage stations in the main residence, water distribution systems in municipal sewage treatment plants, drainage stations in human defense systems, water supply equipment in water supply plants, sewage discharge in hospitals and hotels, construction sites in municipal engineering, mining auxiliary machines, rural biogas ponds, agricultural irrigation and other industries to convey granular sewage and dirt, and also for clear water and weakly corrosive media.

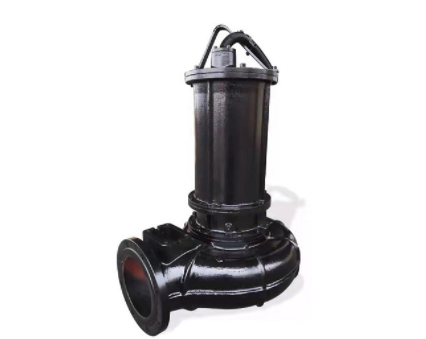

Submersible Sewage Pump

Submersible Sewage Pump Product Features

1、Adopt double-blade impeller structure, greatly improving the dirt passing capacity

2、The mechanical seal adopts a new type of sassafras sub, and runs in the oil chamber for a long time;

3, the overall structure is compact, small volume, small noise, energy-saving effect is remarkable, easy to repair, convenient for users to replace;

4、The automatic control cabinet can automatically control the pump's over-action and stop according to the required liquid level change, without the need for personal supervision, extremely convenient to use;

5、It can be equipped with the installation method according to the user's needs, which brings great convenience to the installation and maintenance, and people can enter the cesspool without this;

6、Can be used within the design range, and ensure that the motor will not be overloaded;

7、The mechanical seal is made of new hard and corrosion-resistant titanium tungsten material, which can make the pump run continuously for more than 8000 hours safely.

Submersible Sewage Pump Operating Conditions

1、Submersible Sewage Pump series products are applicable when the rated voltage is 380V and the power frequency is 50Hz.

2、Medium temperature not more than 40 degrees Celsius, medium density ≤ 1150kg/m3, PH value between 5-9 range;

3, altitude not more than 1000 meters;

4、The annual viscosity of the conveyed medium should not exceed 1000CP;

5、The product must be completely submerged in water when working, but the diving depth must not exceed 10m;

6、The material of the product is mainly cast iron, which cannot be used in strong corrosive or corrosive medium;

Note: Be sure to make the actual conditions of use of the pump comply with the above terms before selection or installation to ensure the correct use of the product!

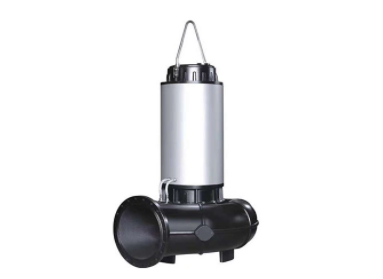

Submersible sewage pump wholesale manufacturer

Submersible Sewage Pump can be installed in two ways.

1、Mobile installation system.

It is supported by a bracket and can work by connecting a water outlet hose.

2、Automatic coupling device system

High-efficiency sewage pump is suitable for long-term fixed use, with the advantages of quick installation, easy detection and maintenance. The system uses a special base, fixed at the bottom of the sump pit, connected with the outlet pipe, installed on the top of the pool supporting blocks, with a guide rod to make the two connected, the pump is connected with a specific bracket, along the guide rod to slide down to the base, with its automatic coupling, sealing, and lifting automatically off.
